Coil Nailer

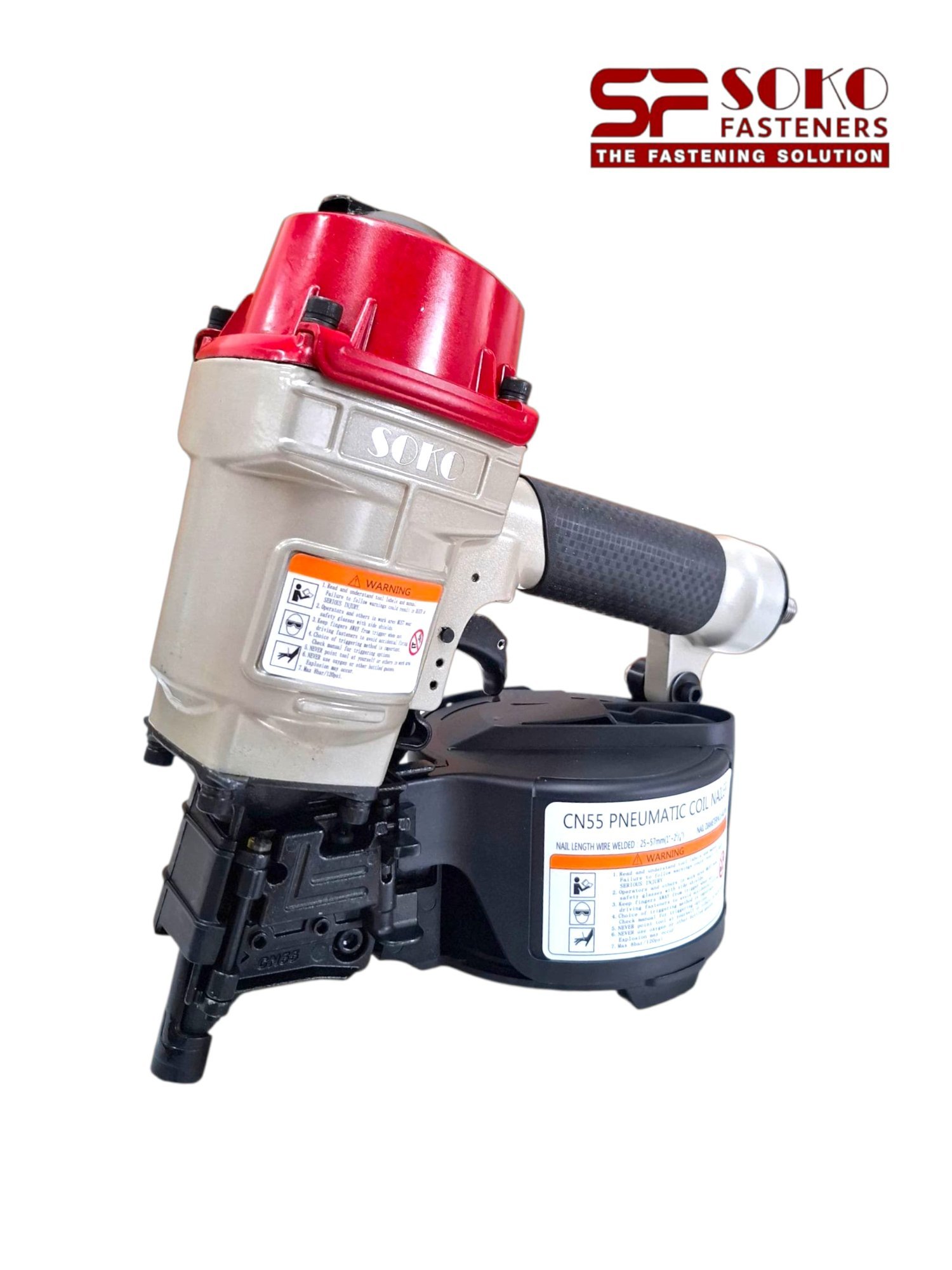

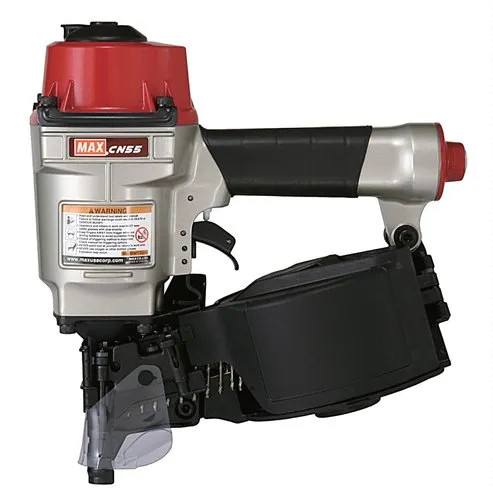

Coil Nailer CN 55
This best-selling lightweight CN55 nail gun features an aluminum housing that makes it durable enough to withstand the rigors of all-day use repeatedly and won’t rust easily. High-strength PC magazines are extremely wear-resistant. Large carbide inserts for long-lasting performance. Piston and bumper lifespan exceeds 500,000 times, real cost saver and long working life
Specifications –
Angle : 15°Shank Diameter : 2.1mm~ 2.5mmNail Length : 25mm ~55mm (1 ” ~ 2 1/4 ”)Weight : 2.55 Kg (5.5 lbs)Fastener Capacity : 225 ~ 300 NailsTool Dimensions : 316mm X 127mm X 306mmOperate Pressure : 5~7.5 Kg/Cm² (75~110Psi)
| Model Name/Number | CN-55 |
| Brand | MAX |
| Warranty | 6 months |
| Air Pressure | 5-7kg/cm(regulator) |
| Load Capacity | 1-ROLL(300PCS-350PCS) |

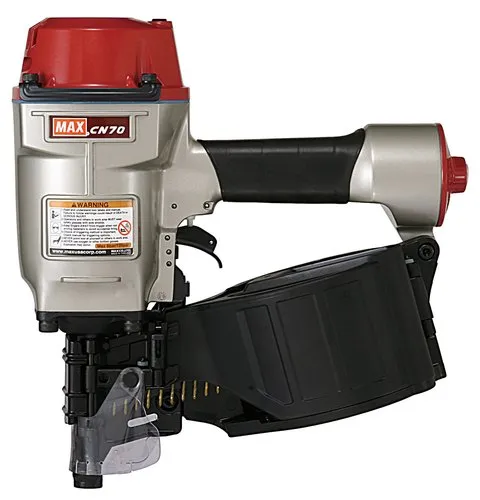

Coil Nailer CN 70
This nailer is used for wooden packaging & pallet manufacturing ,Heavy duty and powerful, a must have for roof installation! Pro-PAC nailers can be used for pallets, crating, fences, decking, sheathing, siding, etc
Specifications –
Angle : 15°Shank Diameter : 2.3mm~ 2.9mmNail Length : 45mm ~70mm (1 ¾ ” ~ 2 ¾ ”)Weight : 3.55 Kg (7.81 lb)Fastener Capacity : 225 ~ 300 NailsTool Dimensions : 316mm X 127mm X 306mmOperate Pressure : 5~7.5 Kg/Cm² (75~110Psi)
| Model Name/Number | CN70 |
| Brand | MAX |
| Warranty | 6 months |
| Air Pressure | 5-7kg/cm(Regular) |
| Weight | 3,500gms |
| Nail Diameter | 315*128*306 |
| Nail Capacity | 1-ROLL(225PCS-300PCS) |
- Pallets, Crating, Fences
- Decking Packaging
- Pallets Crating Fences
- “Contact Mode” safety system.
- Light die cast body of aluminium alloy.
- Side loading system.
- Easy length adjust design.
- Tool includes Case, Tool oil and Wrench.

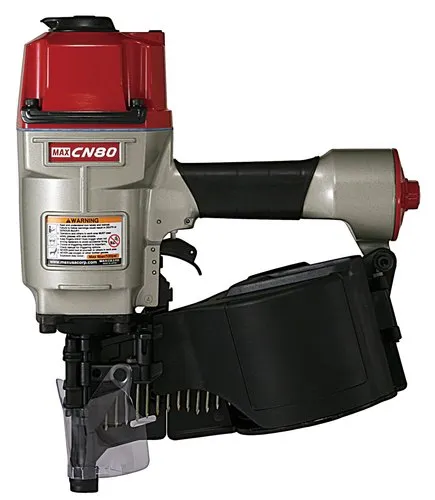

Coil Nailer CN 80
This nailer is used for wooden packaging & pallet manufacturing. New! More power, work faster! The toughest, lightest most powerful production coil nailer we have created.
Specifications –
Angle : 15°Shank Diameter : 2.5mm~ 3.3mmNail Length : 50mm ~80mm (2” ~ 3 ¼”)Weight : 3.70 Kg (8.20 lb)Fastener Capacity : 300 NailsTool Dimensions : 349mm X 113mm X 347mmOperate Pressure : 5~7.5 Kg/Cm² (75~110Psi)
| Model Name/Number | CN-80 |
| Brand | MAX |
| Warranty | 6 months |
| Air Pressure | 5-7kg/cm(Regulator) |
| Weight | 3,700gms |
| Nail Capacity | 1-ROLL(300PCS) |
| Inside Diameter | 8.5mm and above |
| Dimension | 362*132*307 |
- Pallets, Crating, Fences
- Packaging Decking Siding
- 360° exhaust direction.
- “Contact Mode” safety system.
- Light die-cast body of aluminium alloy.
- Side loading system.
- Easy length adjust design.
- Tool includes Case, Tool oil and Wrench.

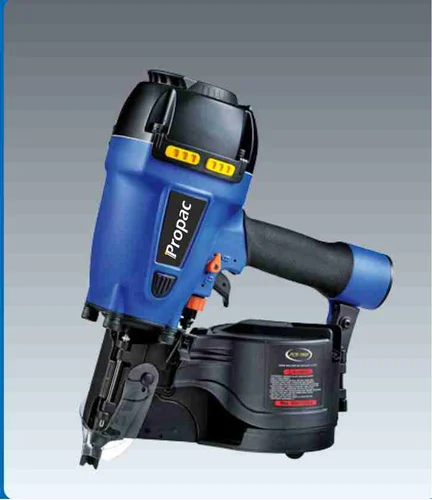

Coil Nailer CN 90
A reliable workhorse, it won”t let you down! Durable and compact, a proven performer for tough job site work.
Specifications –
Angle : 15°Shank Diameter : 2.8mm~ 3.8mmNail Length : 50mm ~90mm (2” ~ 3 ½ ”)Weight : 3.70 Kg (8.20 lb)Fastener Capacity : 300 NailsTool Dimensions : 349mm X 113mm X 347mmOperate Pressure : 5~7.5 Kg/Cm² (75~110Psi)
- 360° exhaust direction.
- “Contact Mode” safety system.
- Light die-cast body of aluminum alloy.
- Side loading system.
- Easy length adjust design.
- Non-marring tip available.
- Tool includes Case, Tool oil and Wrench.
- Heavy Duty Pallets and Crating
- Packaging

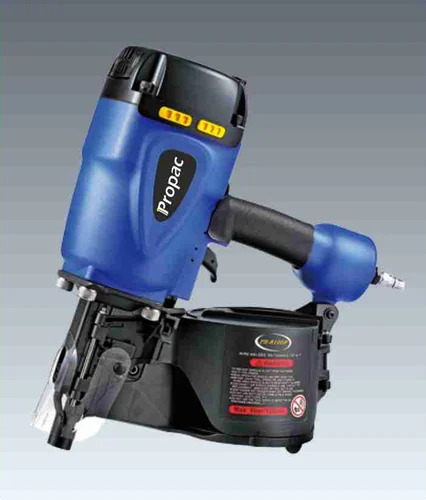

Coil Nailer CN 100
The Pro-PAC coil nailer is designed to be used for a variety of applications including wood packaging, construction, pallets, etc.
Specifications –
Angle : 15°Shank Diameter : 2.5mm~ 3.8mmNail Length : 57mm ~102mm (2 ¼ ” ~ 4 ”)Weight : 5.24 Kg (11.54 lb)Fastener Capacity : 225~300 NailsTool Dimensions : 338mm X 153mm X 418mmOperate Pressure : 5~7.5 Kg/Cm² (75~110Psi)
- 360° exhaust direction.
- “Contact Mode” safety system.
- Light die-cast body of aluminium alloy.
- Side loading system.
- Easy length adjust design.
- Non-marring tip available.
- Tool includes Case, Tool oil, and Wrench.
- Heavy Duty Pallets and Crating
- Packaging
Coil Nailer CN 130
The Pro-PAC Framing Nailer brings you power, productivity, and profit. The Pro-PAC coil nailer is designed to be used for a variety of applications.
Specifications –
Angle : 15°Shank Diameter : 3.05mm~ 3.8mmNail Length : 75mm ~130mm (3 ” ~ 5 ”)Weight : 5.79 Kg (12.70 lb)Fastener Capacity : 120~225 NailsTool Dimensions : 338mm X 153mm X 478mmOperate Pressure : 5~7.5 Kg/Cm² (75~110Psi)
- 360° exhaust direction.
- “Contact Mode” safety system.
- Light die-cast body of aluminium alloy.
- Side loading system.
- Easy length adjust design.
- Non-marring tip available.
- Tool includes Case, Tool oil, and Wrench.
- Heavy Duty Pallets and Crating
- Packaging Construction

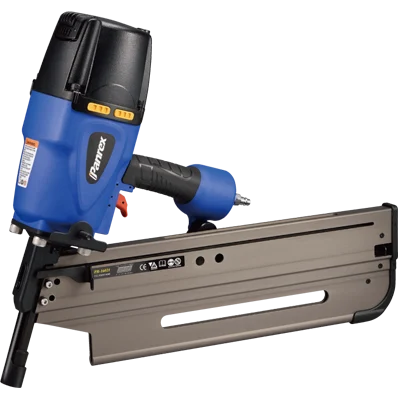

Framing Nailer, Nail Gun 6 inches
Specifications –
Type Of Nail : Full Round Head Plastic CollatedShank Diameter : 3.8-5.0mm(.150 -.197 )Weight : 14.96 lbs(6.80kg)Fastener Length : 100-160mm(4 -6 1/4 )Load Capacity : 55-60 NailsOperate Pressure : 80-120psi(5.5-8.3kg/cm²)
